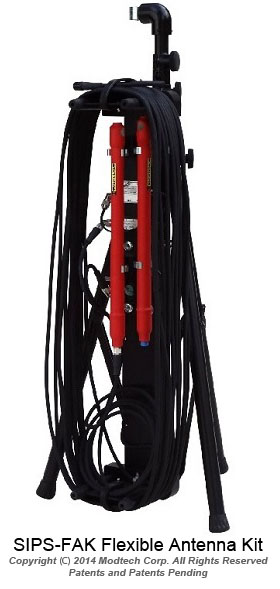

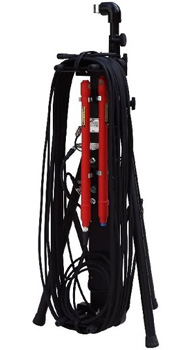

Flexible Antenna Kit

Portable In-Building Communications Solutions > Flexible Antenna Kit

SIPS-FAK	SIPS-FAK Flexible Antenna Kit RF interconnection hardware
Flexible Antenna Kit

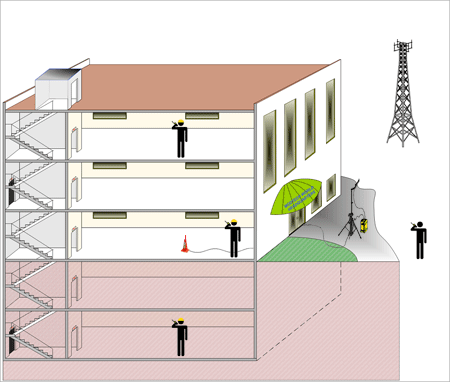

Large, challenging structures...

...can be best covered using SIPS-FAK

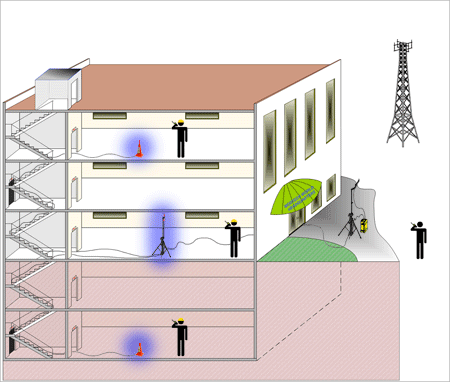

Great RF coverage established inside large structure with SIPS FAK (Flexible Antenna Kit)

Overview

When site and coverage logistics are challenging, SIPS FAK (Flexible Antenna Kit) is used in conjunction with the SIPS-BDA tactical BDA system providing additional cabling and antennas to flexibly extend the coverage enhancement zone. SIPS-FAK comes with everything needed to deploy up to three indoor antennas in a variety of patterns extending coverage zones in both horizontal and vertical directions. Especially helpful in very large structures such as high-rise buildings, complex factory, and shipboard environments, SIPS-FAK allows great flexibility adapting to complex RF environments.

Please contact a SIPS Specialist with your additional questions or requirements.

Benefits

• Deployed by a single operator in minutes extending coverage for all responders
• FAK operation is familiar, simple, and patterned after SAK
• Comes with everything needed including cables, antennas, RF hardware
• Ultra-flexible, low-loss cables have heavy duty reinforced N-connectors for maximum reliability

System includes

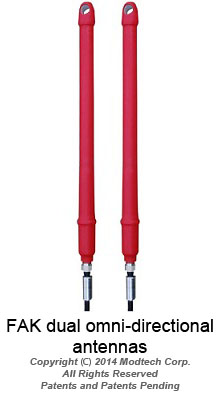

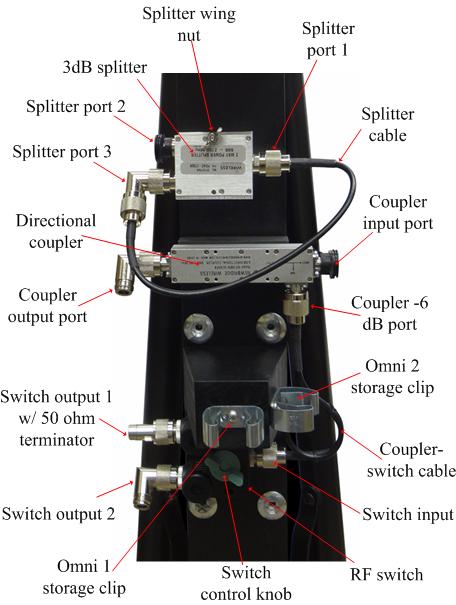

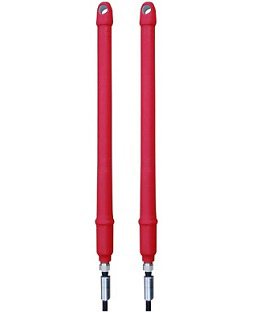

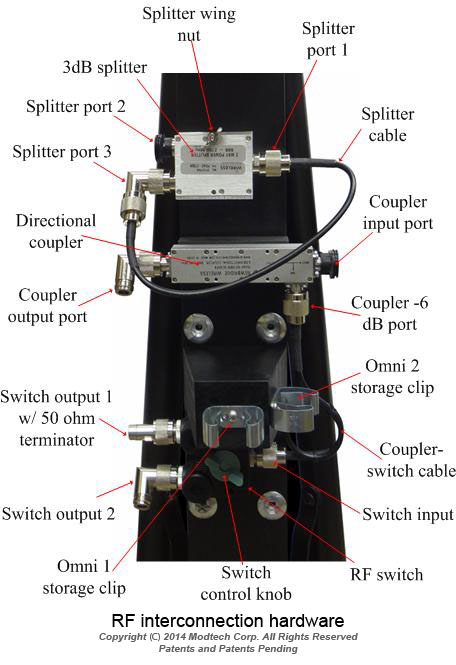

Rugged tripod with coaxial cable organizer, antenna mounts, and RF hardware	RF interconnection hardware	Dual omni-directional server antennas	Heavy-duty duffel with padded shoulder strap	Omni-directional antenna stand / safety cone

Brochures

Modtech Corp - SIPS-BDA-800 - Brochure

Manuals

SIPS-BDA Deployment Examples

Modtech Corp - SIPS-FAK - Operators Manual
